PFEIFFER ASM 310 (Helium Leak Detectors/ Máy dò tìm rò rỉ (Máy phát hiện rò rỉ) Hê-li)
Giá bán: Liên Hệ.
- Mô tả sản phẩm

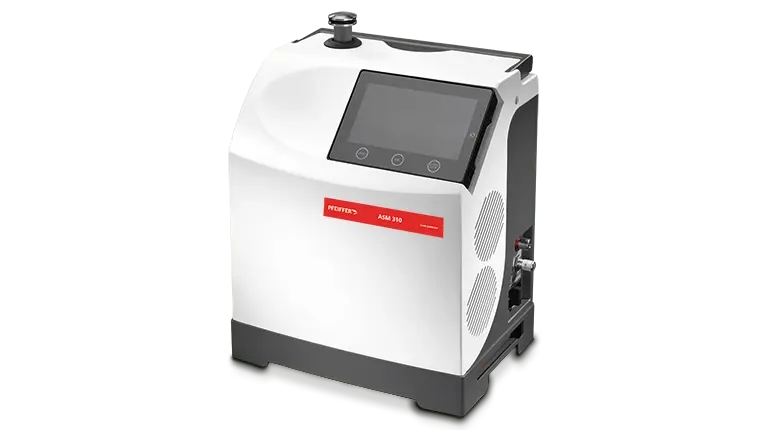

PFEIFFER ASM 310 Series
“The compact, lightweight and portable solution”
- Ideal for maintenance applications
- Small and portable
- No compromise on performance
Benefits of the ASM 310 series
For maintenance tasks where mobility is a major factor, the ASM 310 portable leak detector is ideal. It weighs over 50% less than a standard leak detection unit and can be operated in any position. A universal mains connection makes the ASM 310 ready for use anywhere in the world. Optional accessories include a wheeled trolley for even better mobility, a retractable handle, and a carrying case that allows the unit to be taken on an airplane for worldwide service calls.
Despite its light weight and compact dimensions, the ASM 310 is a complete tracer gas leak detection unit equipped with the same detector technology and the same sensitivity as larger models. As a result, it is ideal for applications where a smaller size is more important than high pumping speeds.
Its clean, oil-free pumping system makes the ASM 310 the right choice for leak detection on systems that cannot tolerate any contamination.
The ASM 310 is equipped with a high-resolution color display and can be easily operated via a detachable control panel or with a remote control. The user-friendly menu navigation can be customized as well as password protected.
Thanks to its internal memory, the ASM 310 offers the option of documenting leak detection results in the form of image or text files. Data, test configurations and operating parameters can be downloaded or transferred to other devices via a dedicated USB port.
Technical specifications
| Technical data | ASM 310 |
|---|---|
| Test method | Spraying and sniffing tests |
| Detectable gases | ⁴He; ³He; H₂ |
| Min. detectable leak rate for Helium (spraying test) (Pa m³/s) | 1 · 10⁻¹³ Pa m³/s |
| Min. detectable leak rate for Helium (spraying test) (mbar l/s) | 1 · 10⁻¹² mbar l/s |
| Min. detectable leak rate for Helium (sniffing test) (Pa m³/s) | 1 · 10⁻⁸ Pa m³/s |
| Min. detectable leak rate for Helium (sniffing test) (mbar l/s) | 1 · 10⁻⁷ mbar l/s |
| Pumping speed for Helium | 1.1 l/s |
| Power supply | 90-240 V |
| Max. power consumption | 300 W |
| Max. test inlet pressure | 15 mbar |
| Start-up time (20 °C) | <2 min |
| Response time | <1 s |
| Backing pump | Diaphragm pump |
| Roughing capacity | 1.7 m³/h |
| Operating temperature | 10-40 °C |
| Communication interfaces | Standard 15 pins I/O, RS-232 |
| Sound pressure level | <45 dB(A) |
| Weight approx. | 21 kg |
| Dimensions (L x W x H) | 350 x 254 x 414 mm |
| Inlet port | DN 25 ISO-KF |
Markets & applications
Automotive and Transport
- Heat Treatment
- Leak Detection and EoL Testing
- Space Research
- E-Beam Welding
- 3D Printing
Battery
- Leak Detection and EoL Testing (Master)
Biogas Handling
- Upgrading Pressure Swing Adsorption
- Circulation
- Upgrading Membrane
Carbon Capture
- Amine Scrubbing
- Membrane Capture
- Direct Air Capture
Chemical
- Laboratory Vacuum
- Freeze Drying, Lyophilization
- Leak Detection
Hydrogen Economy
- Leak Detection and EoL Testing (Master)
Medical
- Lab Vacuum
- Leak Testing Of Medical Devices
- Mass spectromer
Metallurgy
- Die Casting
- Vacuum Sintering
- E-beam welding
- Vacuum Brazing / Soldering
- 3D Printing
- Heat Treatment
Pharma and Biotech
- Freeze Drying, Lyophilization
- Laboratory Vacuum
- Leak Detection
Power Generation
- Condenser Air Extraction
- Green Energy Generation
- Waterbox Priming
- Transformer Drying
- Transformer Oil Purification
R&D
- Freeze Drying, Lyophilization
- High Energy Physics
- Central Vacuum
- Space Research
- Ultra-High Vacuum
- Cryogenics
- Plasma Physics
- Leak Detection
- Laboratory Vacuum
- Mass Spectrometry
Refrigeration and Air Condition
- Leak Detection and EoL Testing
Scientific Instruments
- Mass Spectrometry
- Surface Analysis
- Electron Microscopy
Semiconductor
- LPCVD / Diffusion
- High flow applications
- Stripping / Ashing
- PVD
- Inspection & Metrology
- Si Poly etch
- Light deposition
- Ion Implantation
- PECVD
- Lithography
- Metal & high K etch
- Oxyde Etch
- Load Lock & Transfer
- Cobalt, WCVD, TiN & TDMAT
- ALD
- Annealing
Solar
- Cell Manufacturing
- Ingot Pulling
- Lamination
Technical Gases
- Liquefaction
- Insulation Vacuum
- Gas Transport
- Bottle Filling
Thin Film Coating
- Optical Coating
- Decorative Coating
- Lab coating
- Glass Coating
- Wear Protection Coating
